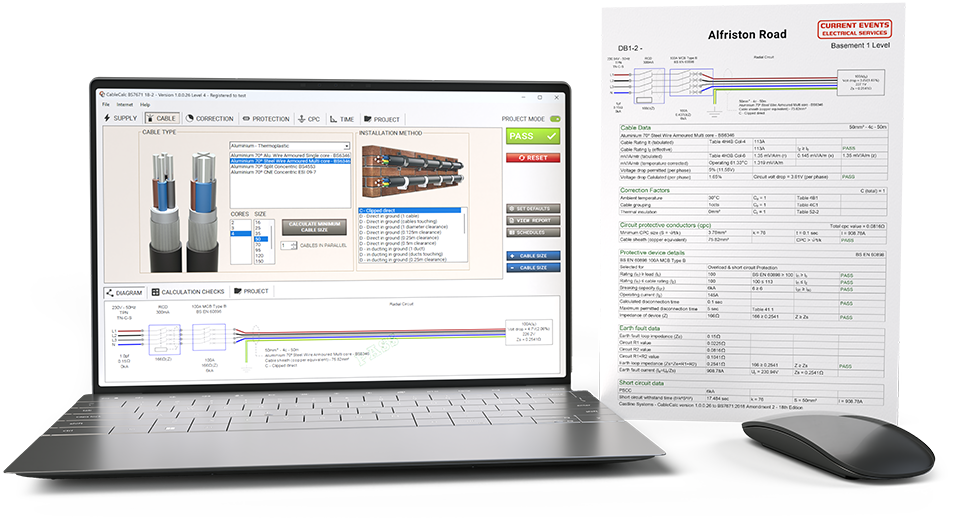

New for 2024, CableCalc 18-2 BS7671 Edition is a software application for performing electrical calculations for circuit cable sizing and the creation of distribution board designs. CableCalc 18-2 is the ideal tool for electricians and designers and is fully compliant with BS7671:2018+A2:2022 Requirements for Electrical Installations, IET Wiring regulations 18th Edition Amendment 2.
Available for Windows PC and Mac, easily calculate volt drop, disconnection time, fault current, earth fault, overload & short circuit for single and three phase projects. Evaluate sub-circuits & feeder cables for multiple distribution board projects. Once finalised, produce detailed diagrams, schedules and schematic drawings for the complete cable installation.

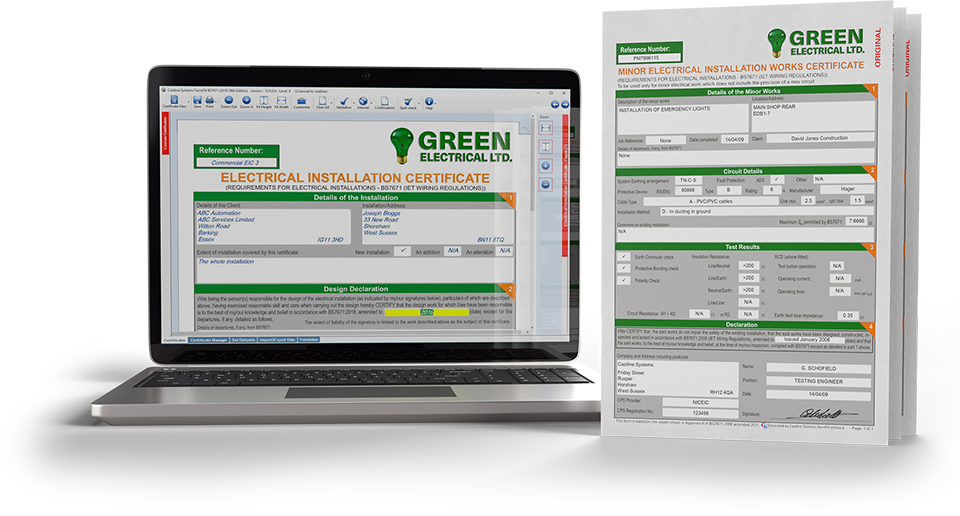

FormFill is an application for managing and producing test & inspection certificates, commercial fire alarm and emergency lighting certificates. available for Windows PC and Mac, FormFill is fully compliant with BS7671:2018+A2:2022 Requirements for Electrical Installations, IET Wiring regulations 18th Edition Amendment 2.
Fill certificates in on-screen or collect data in advance using the mobile app or compatible test instruments then issue branded certificates that include your company logo and choice of colours. Certificates are validated for errors and your client data is stored for easy retrieval in the future.
Get CableCalc 18-2 and FormFill together for as little as £16.50 per month and even enjoy the first month free with a
As an alternative to CableCalc BS7671 for Mac and Windows, Castline Systems offer a standalone iPad app. CableCalc BS7671 for iPad is the ideal tool to carry out single and three phase cable calculations for radial, ring and sub main circuits quickly on-site.
CableCalc BS7671 will calculate and check voltage drop, disconnection time, fault current, earth fault data, overload and short circuit data while applying correction factors such as temperature and grouping if required. When your calculation is complete, CableCalc BS7671 will produce a detailed PDF report ready for printing and emailing to your clients. Calculations can also be saved so they may be edited at a later date.

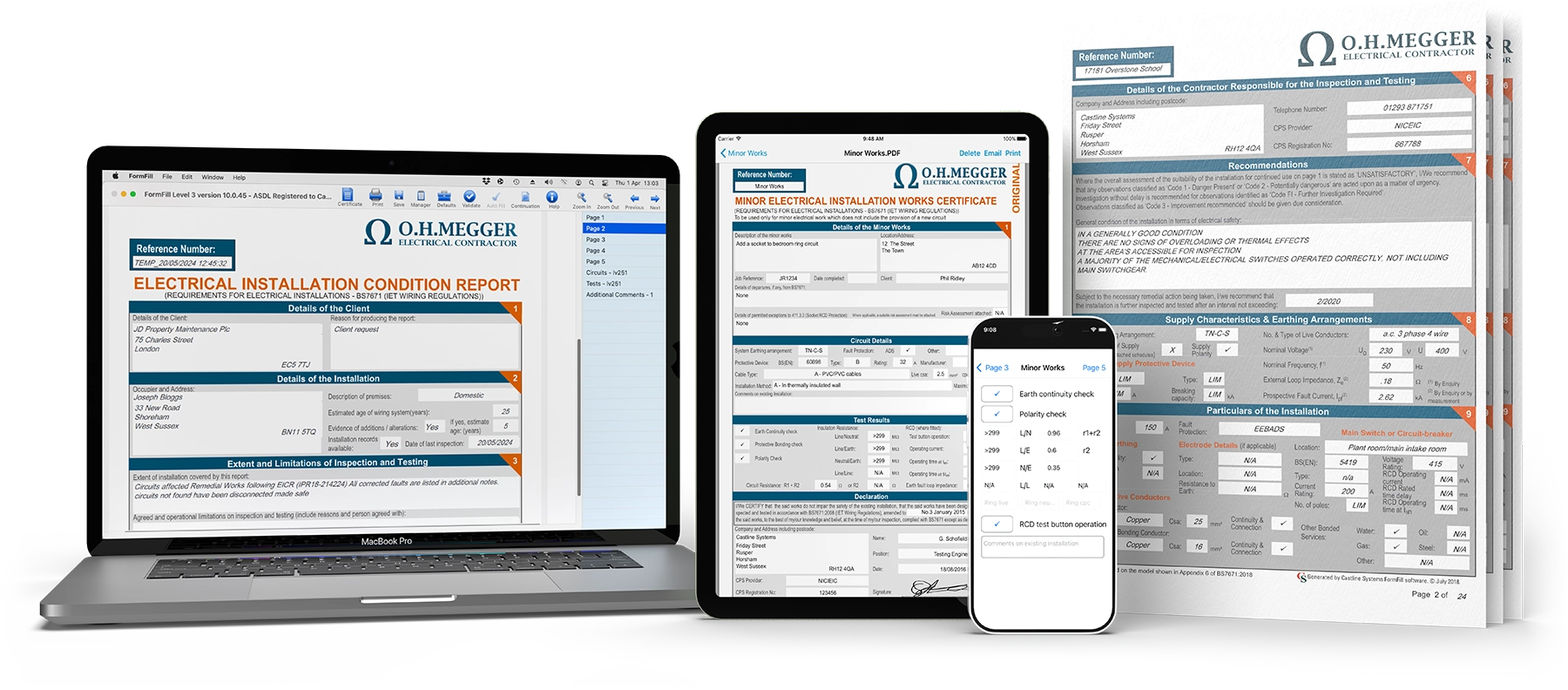

In addition to the supporting mobile apps for desktop versions of FormFill, Castline Systems offer a standalone version of FormFill for iPad. FormFill Pro gives you the ability to produce BS7671 electrical certificates directly from your iPad. FormFill Pro includes all current BS7671 certificates as standard; Minor Electrical Installation Works, Electrical Installation Certificate, Electrical Installation Condition Report and Domestic Fire Alarm Installation Certificate and has an option to add BS5266 Emergency Lighting and BS5839 Commercial Fire Alarm certificates too.
Certificates may be customised by adding your company logo and setting your choice of background and text colours. You can also add photos from your camera roll to certificates on additional pages before emailing them direct to your client or printing them using an Airport compatible printer.
Unlock the intricacies of CableCalc 18-2 with our latest tutorial videos, now available on YouTube. From a comprehensive overview to in-depth tutorials on single and three-phase lighting calculations, and project creation/editing walkthroughs, master cable and circuit design with step-by-step guidance.
New for 2024, the eagerly anticipated release of the Windows version of CableCalc 18-2 superseeds CableCalc BS7671 18th Edition and is now available to all customers. To start using CableCalc 18-2, go to the customer area download the installer.
For a limited time only, standalone purchases of CableCalc Level 3 may be purchased for the discounted price of £495 + vat (usually £695). This saving is also available for existing CableCalc customers wishing to upgrade.
With the recent release of BS7671:2018 2nd Amendment, FormFill version 13 is now available to comply with new certificate requirements.
If you subscribe to Upgrade, Maintenance and Support or an Annual or Monthly License Scheme, you can access the latest version from the customer area. If you are not currently subscribed to any of these schemes then please contact Castline Systems for information on upgrade options.
Castline Systems have grown and developed over the years and we felt it was time for a change. After careful consideration we have refreshed our logo to reflect a more modern look and to represent who we are today. We are proud of this change and hope you like it as much as we do.
We have set up a Facebook page for our customers and followers. Follow us on Facebook to learn about new developments, program updates and special offers from Castline Systems.
FormFill certification and CableCalc cable-design software packages are available together from as little as £16.50 per month.
All licenses come with Mac and Windows versions and also include a range of mobile apps for Android & iOS. All the time you renew your licenses, technical phone and e-mail support is included too.
See Licenses for more information and to sign up.
As the festive season approaches, we want to let you know that our office will be closed from 23rd December to 5th January. We’ll be back and ready to help on 6th January.
Thank you for all your support this year – we truly appreciate it. Wishing you a very Merry Christmas and a Happy New Year!
